Load a CalBack Exported File

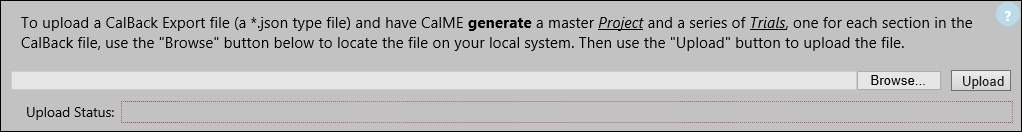

The following controls, located on the Projects Page, are used to browse the local computer's file system to locate and select a file that has been exported out of CalBack for the purpose of importing into CalME.

When the CalBack file is uploaded, CalME will create a new project and a series of project trials, one for each of the sections contained in the exported CalBack file.

If valid project location data (district, county, route, direction, and beginning and ending postmiles) are entered in CalBack, CalME will automatically extract these data and setup the project location, traffic, and climate. See here for an example.

The following is a description of the CalBack-related controls:

•Browse button - used to locate and select a CalBack exported file on the local computer's file system

•Upload button - used to upload the file to CalME

•Upload Status area - used to show the status of the file upload process

The question mark in the blue circle in the upper-right of the control group allows you to get help on the controls (this topic).
