Permanent Deformation Graph

The Permanent Deformation graph is generated by going to the Graphs page and selecting the "PermDef" button.

The Permanent Deformation graph shows layer permanent deformation vs. Time for each simulation. You can also select to see the variation with Axles or ESALs using the radio buttons in the upper right of the page.

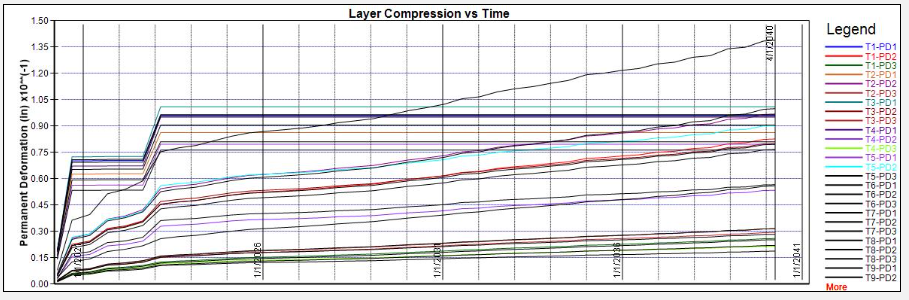

The example below is for a Monte Carlo simulation type with 10 simulations.
