Rutting Graph

The Rutting graph is generated by going to the Graphs page and selecting the "Rutting" button.

The rutting graph shows the surface rutting vs. Time for each simulation (if the "Individual Simulations" check box is selected) and also shows the average rutting of all simulations (the average is the curve shown in the real-time graph). You can also select to see the variation with Axles or ESALs using the radio buttons in the upper right of the page. The maximum allowed rutting depth is shown as a horizontal line at 0.40 inches.

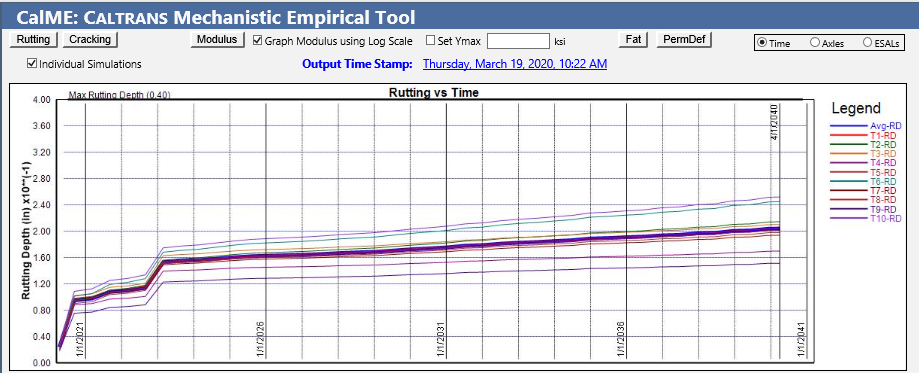

The example below is for a Monte Carlo simulation type with 10 simulations.
