Cracking Graph

The Cracking graph is generated by going to the Graphs page and selecting the "Cracking" button.

The cracking graph shows the surface cracking vs. Time for each simulation (if the "Individual Simulations" check box is selected) and also shows the average cracking of all simulations (the average is the curve shown in the real-time graph). You can also select to see the variation with Axles or ESALs using the radio buttons in the upper right of the page. The maximum allowed cracking is shown as a horizontal line at 50%.

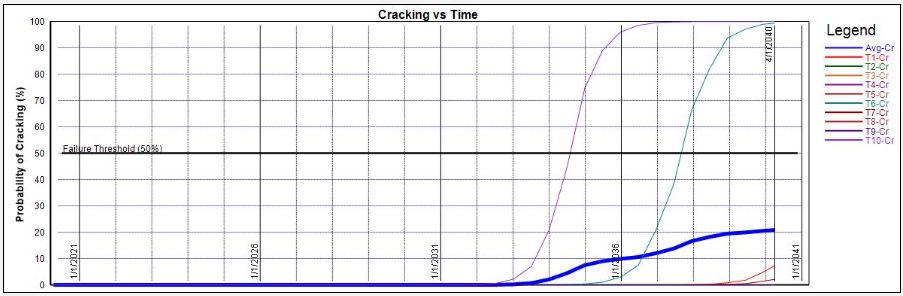

The example below is for a Monte Carlo simulation type with 10 simulations.
