This web application is the central point for all things PaveM.
Bulletin Board
9.
08/28/2018
The Master Work Plan (programmed and recommended projects) for each District and pipeline
projects list (Statewide) from Q3 Project book will now be available for
download. Please visit the MWP tool in PaveM portal.
8.
07/17/2018
The As-built Spreadsheet in now available to allow to generate information on past projects performed by Districts.
7.
05/21/2018
The PCR Tool is now loaded with the 2016 Fine Segmentation data.
6.
11/06/2017
Prior to 10/31/17, the PCR calculations for Estimated Lane Miles and Total
Lane Miles may have contained rounding errors due to data
segmentation. The PCR Tool is now adjusted to
report the condition for the exact limits of the query.
5.
04/06/2017
Please install Silverlight for viewing Current (Pathweb) and Archived Pavement Condition (iVision).
4.
12/29/2016
Instructions for inputting Pavement Performance Data into the SHOPP Tool are
HERE!
3.
12/16/2016
The PaveM Portal is now live!
2.
10/26/2016
The data for the 2017 SHOPP Ten-Year planning is available now in the PaveM tools!
1.
10/26/2016
The new PaveM Portal is here.
PaveM is Caltrans' state-of-the-art Pavement Management System. PaveM utilizes
pavement performance data to efficiently recommend pavement investments. The
system's approach maximizes the return on investment of every pavement
dollar, extends pavement life by treating distresses at the right time, and
achieves targeted performance goals.
PaveM Tools were designed to aid Caltrans pavement staff in identifying hot spots
for needs, focusing on developing right treatments at right times to more
effectively plan and deliver pavement projects.

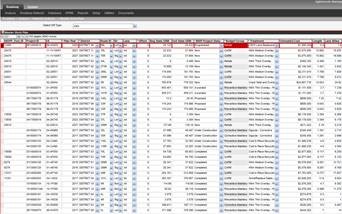

Master Work Plan contains pavement project information that is in
PaveM. It includes approved and planned projects from years 2016 to
2027. Project information includes postmile limits for pavement work
as well as pavement treatment strategies.
Project information is based on the 3rd Quarter Project Book, June 30, 2018.

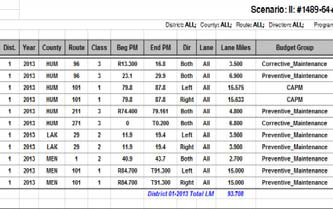

RP List or Recommended Project List, provides users with the list of programmed and PaveM scenario-recommended
projects for programming purposes.

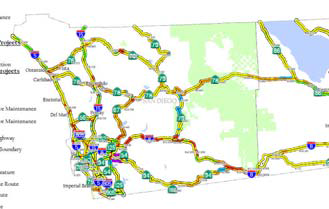

Based on PaveM fine segmentation, these GIS maps plot current and/or future scenario-recommended projects, or both
condition and project.

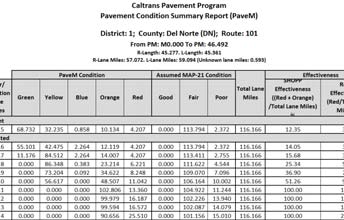

The PCR, or Pavement Condition Report, shows current and future
pavement condition for any specified project range. It also calculates
the SHOPP, Rehab effectiveness of the specified projects range.

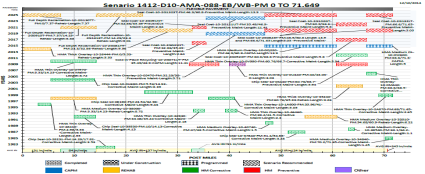

H-Chart, or Highway Chart, is a visual tool that illustrates past, programmed, and
future planned pavement projects from selected stretch of pavement. It also
shows pavement type and condition to facilitate project view and selection.

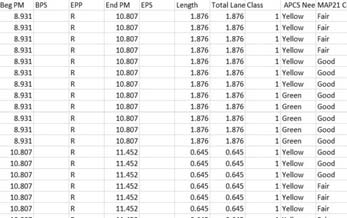

Master data is PaveM output and source for condition maps and PCR.

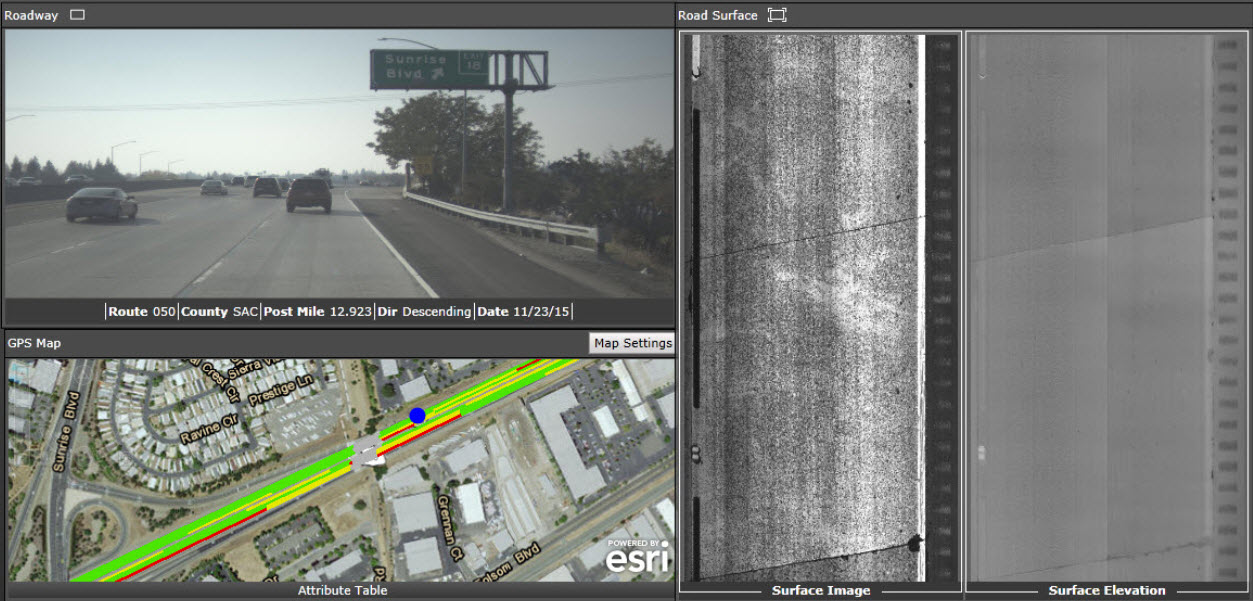

Current pavement condition is one of the most critical input for PaveM.
It is collected through the Automated Pavement Condition Survey
(APCS) contract. APCS also provides the video images for the entire
network.
This application needs Silverlight and works only in Internet Explorer. Please
have IT install this plug-in for Internet Explorer.

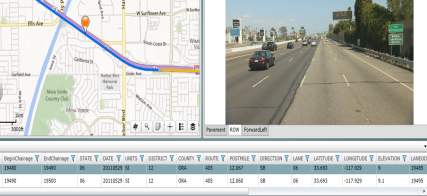

2012 Automated Pavement Condition Survey (APCS).
This application needs Silverlight and works only in Internet Explorer. Please
have IT install this plug-in for Internet Explorer.

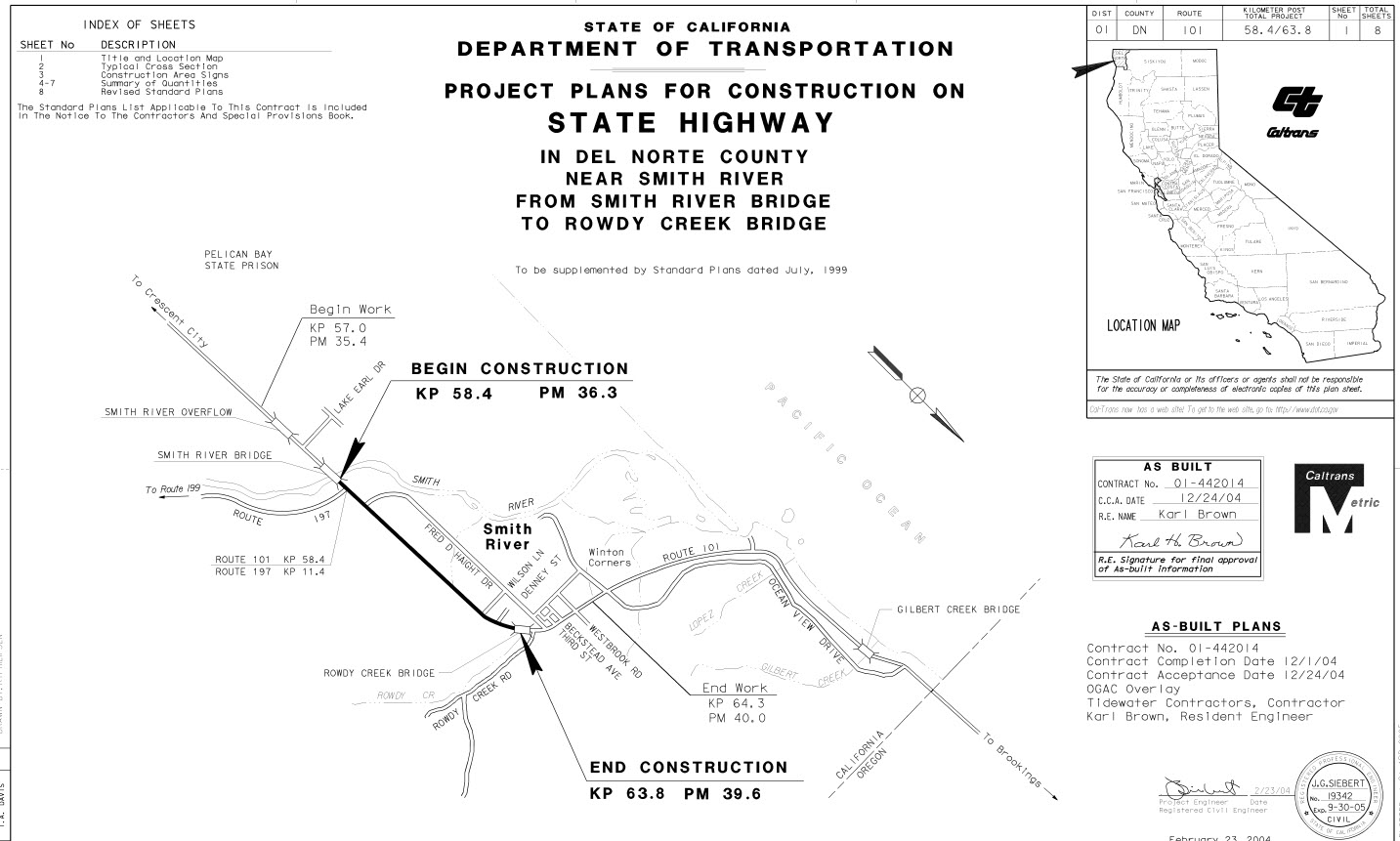

Construction history is critical in properly segmenting the pavement
network. It also establishes the starting pavement condition in PaveM
analysis. Construction history of pavement projects is developed using
online DRS/Falcon Database published by the Office of Construction.

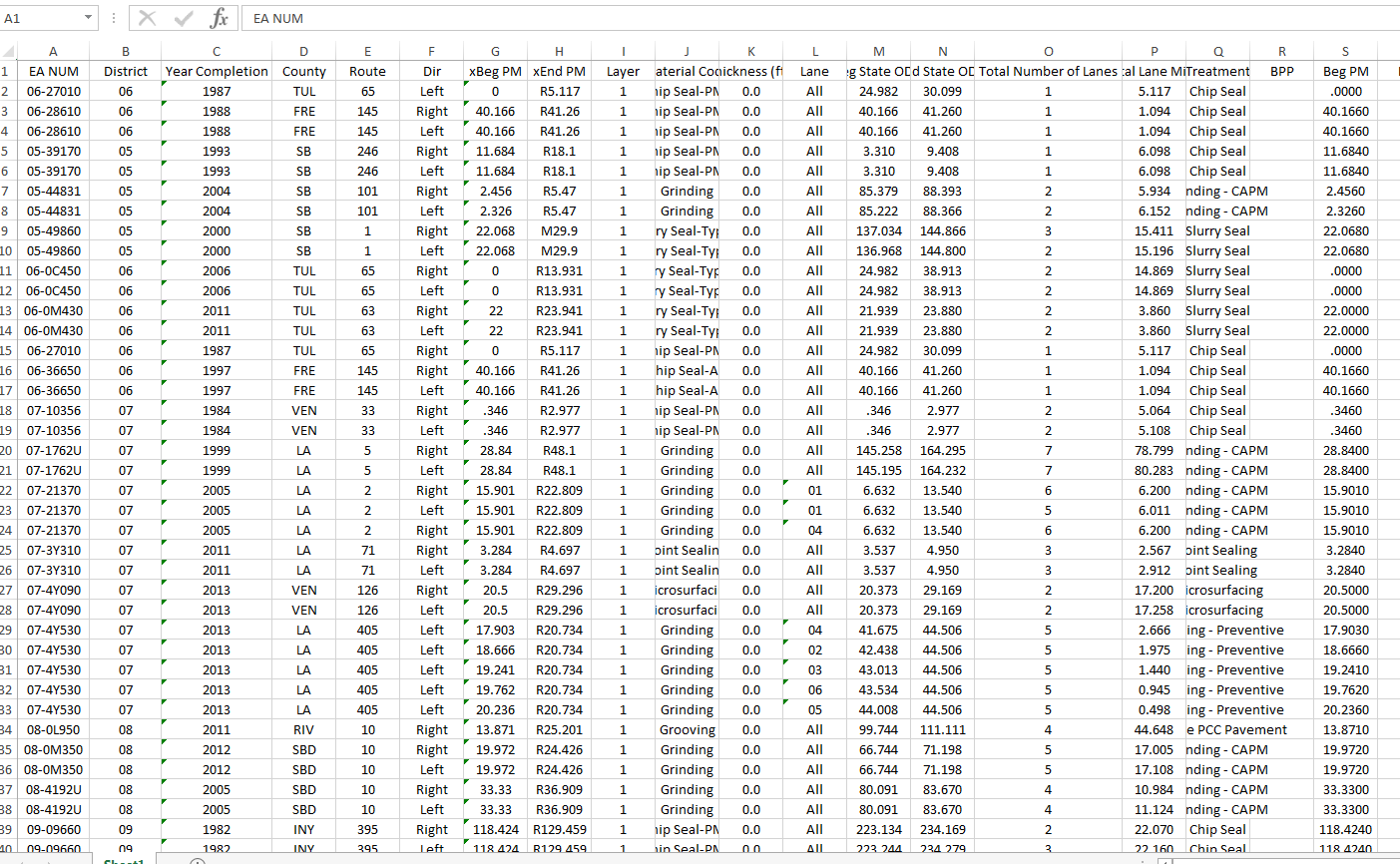

As-built spreadsheet is data that was exported from PaveM and can be used to generate as-built
history of pavement segments in the State of California.

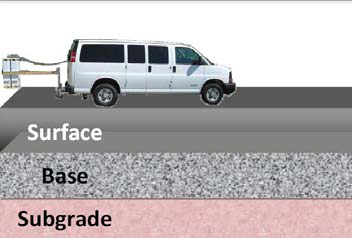

iGPR shows the profile of the pavement structural section by mapping
density of the structural layers along with detecting voids and moisture.
It also shows photos of cores, uploaded using iGPR-core.
Please contact Nagi Pagadala with any comments or suggestions on the PaveM Portal.
