Fatigue Graph

The Fatigue graph is generated by going to the Graphs page and selecting the "Fat" button.

The Fatigue graph shows the layer fatigue damage vs. Time for each simulation. You can also select to see the variation with Axles or ESALs using the radio buttons in the upper right of the page.

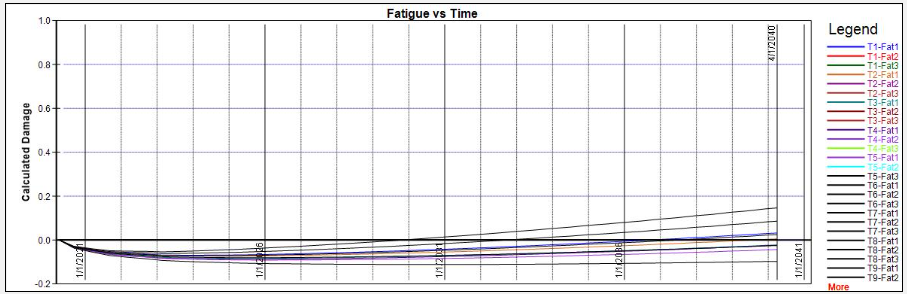

The example below is for a Monte Carlo simulation type with 10 simulations.
