N01 Design Summary

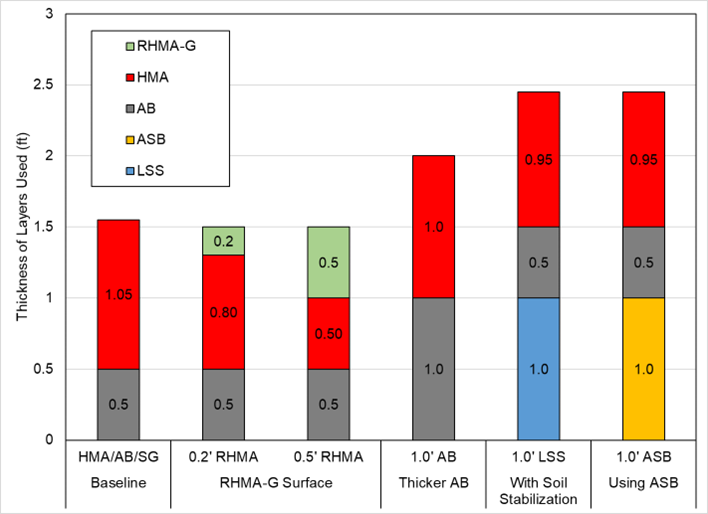

A comparison of the optimal designs for different alternatives is shown in the figure below. This is generated in Excel after collecting all optimal designs. These designs can then be further evaluated in LCCA for cost effectiveness and LCA for sustainability.

Note: CalME removes simulation results periodically. It is recommended that the simulation reports for the optimal designs be generated and downloaded. See Step 5 in Example N01: HMA/AB/SG for how to generate and download reports.
