Material Library

The Material Library page is accessed by selecting Tools -> Material Library.

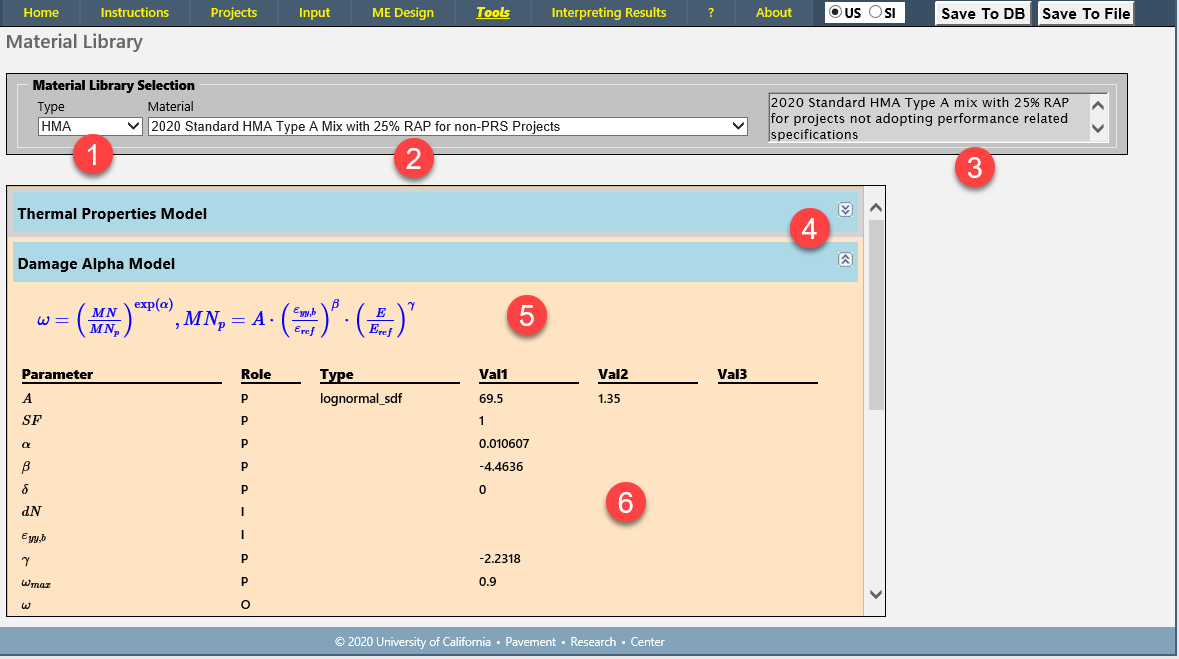

The Material Library page allows you to see the equations and parameters for the various material models used in CalME. You select the Material Type (#1) and then a specific Material (#2) and CalME will list the applicable material models with their parameters. Clicking on the double down arrow (#4) for one of the listed models will expand the view to show the details of the model. Clicking the up arrow will collapse the view for the model.

See the Model Parameters help topic for a discussion of the various material models used in CalME.

Section notes:

1.Material Type selection dropdown control

2.Specific material selection dropdown control

3.Description of the selected material

4.Control to expand and collapse the pane that shows the details of a model

5.Model equation

6.Model parameters:

•Parameter symbol

•The role of the parameter

•The type of the parameter

•The value of the parameter
