Modulus Graph

The Modulus graph is generated by going to the Graphs page and selecting the "Modulus" button.

The modulus graph shows the layer moduli vs. Time for each simulation. You can also select to see the variation with Axles or ESALs using the radio buttons in the upper right of the page. You can see the variation in modulus using Log scale or arithmetic (linear) scale. When viewing the variation in modulus in arithmetic scale, you can set the maximum value for the y-axis by selecting the "Set Ymax" check box and specifying a value in the text box and the selecting the Modulus button.

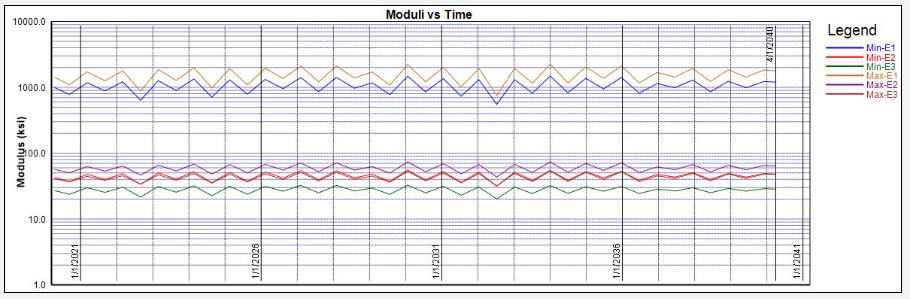

The example below is for a Monte Carlo simulation type with 10 simulations.
