Viewing Data Quality Assessment Data for Material Mix Input Flows
The following controls are located on the Data Quality Page.
This page is shown by either selecting the Data Documentation button when viewing a library mix or adding or editing a user defined material mix, or by selecting the "Data Quality" menu shown below.
.png)
This page lists the input flows (ingredients) that are needed to produce the mix, as shown below. When you navigate to this page using the Data Documentation button eLCAP preselects the Type and Material. When you navigate via the Data Quality menu, you will need to select a material type and a specific material.
To view the rating assessment for a specific flow, click on the name of the flow.
.png)

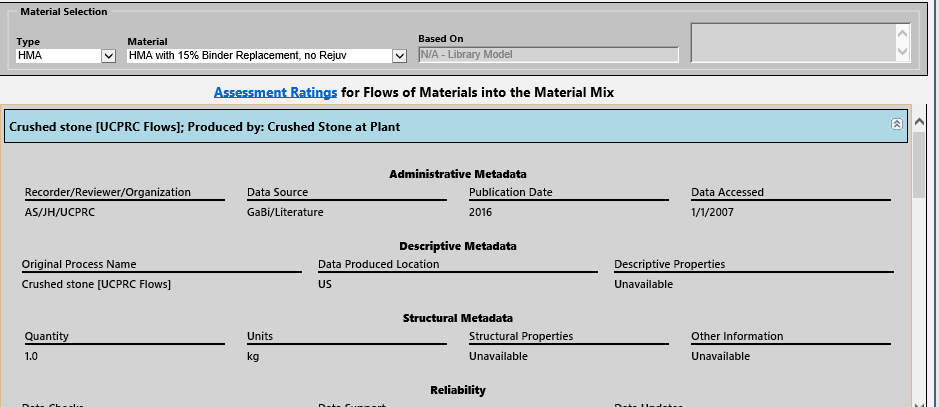

The beginning of the assessment ratings for a flow are high level metadata for the input flow: Administrative, Descriptive and Structural.

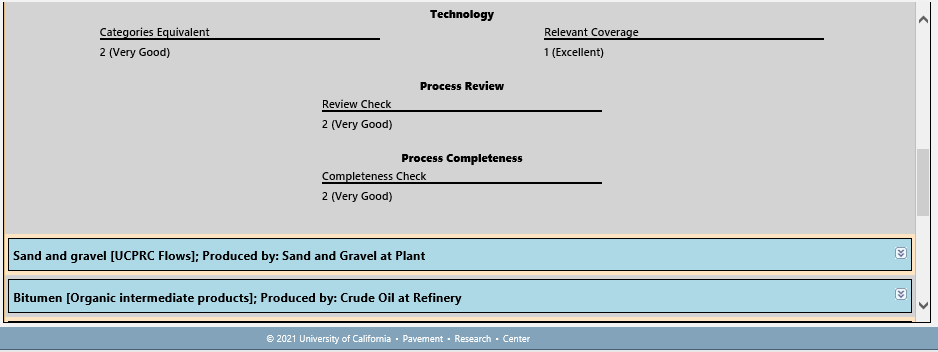

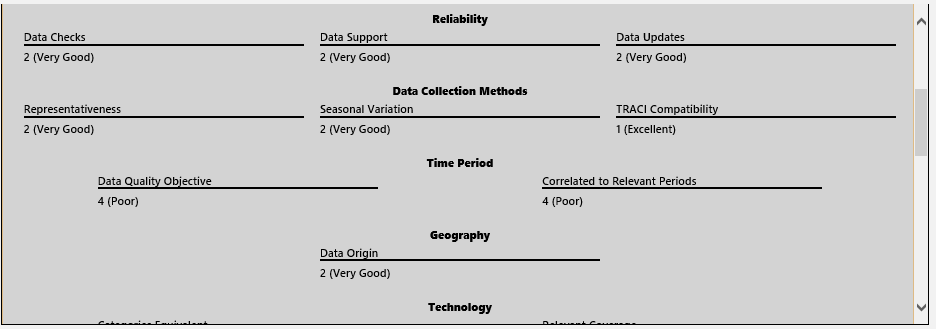

The following data quality assessment areas are: Reliability, Data Collection Methods, Time Period, Geography, Technology, Process Review and Process Completenss.
.png)
.png)
The details of the data quality areas and the specifics of the ratings are located in the Assessment Ratings topic.
|
