Life Cycle Page
The following controls are located on the Input -> Life Cycle Page.
.png)

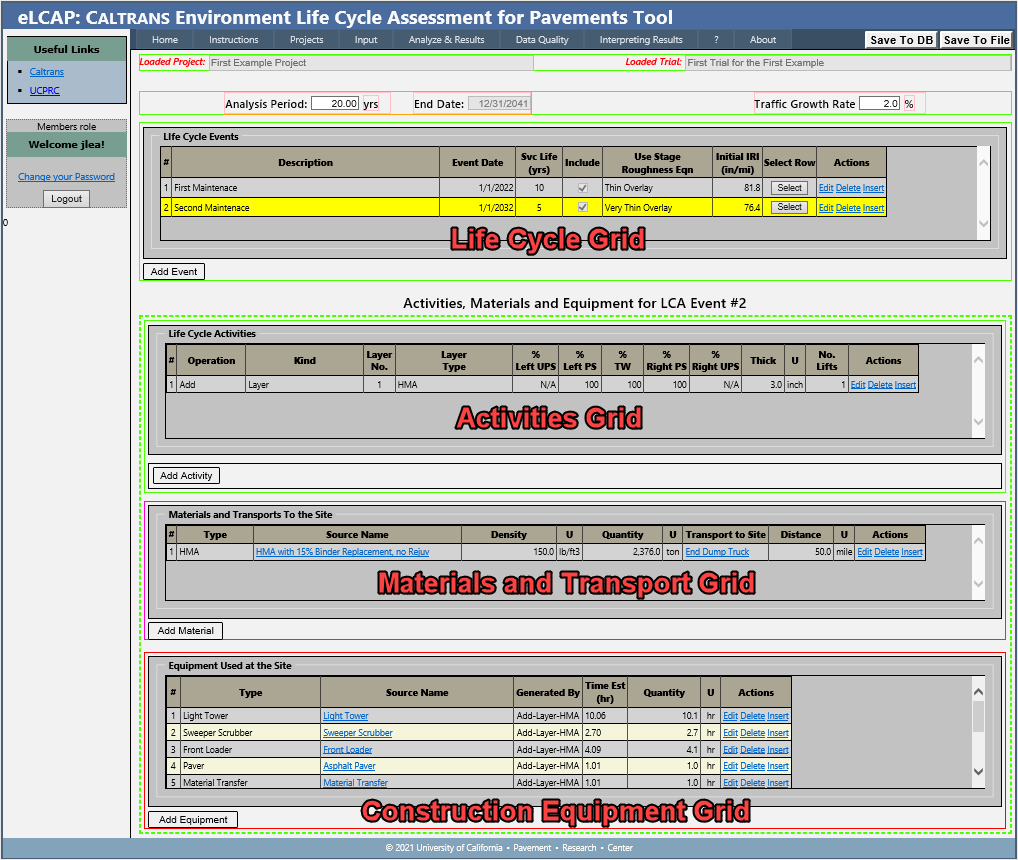

This page is used to define the series of construction events that will model the project’s life cycle, along with the activities (adding layers and removing material), materials and lastly construction equipment. The Life Cycle grid is located at the top portion of the Life Cycle page. Each event is a row in the Life Cycle grid. The data in the other three grids are associated with the selected event (shown in yellow). They constitute the details of the event.
.png)

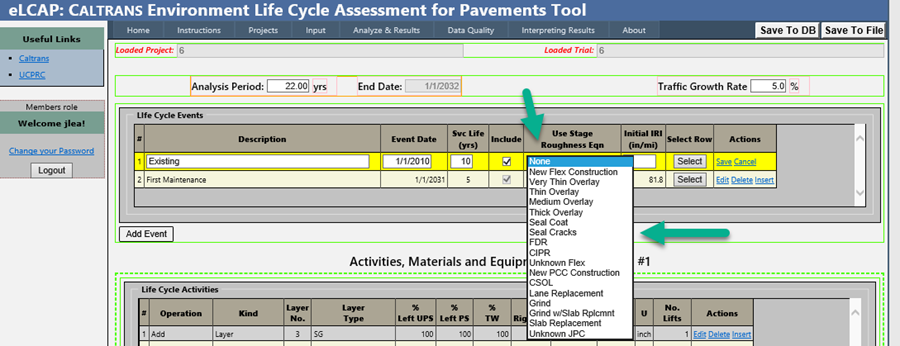

A Life Cycle Event is defined by a user supplied description (.e.g., First Maintenance) for the event, the date of the event and the service life of the activities performed for the event. In addition, a selection for the Use Stage Roughness Equation can be made to indicate to eLCAP to: (1) include the Use Stage, from the selected construction event to the next construction event, and (2) a treatment selection that is representative of the activities for the event.
.png)
Each of the grids on the life cycle definition page consists of rows and columns. When the page first opens, the rows appear in display mode, allowing data items to be viewed but not edited. To enter editing mode to make changes, the user must click the “Edit” link in a particular row. After making changes, clicking “Save” will keep the changes and clicking “Cancel” will discard them.
|
