Source Transport Page

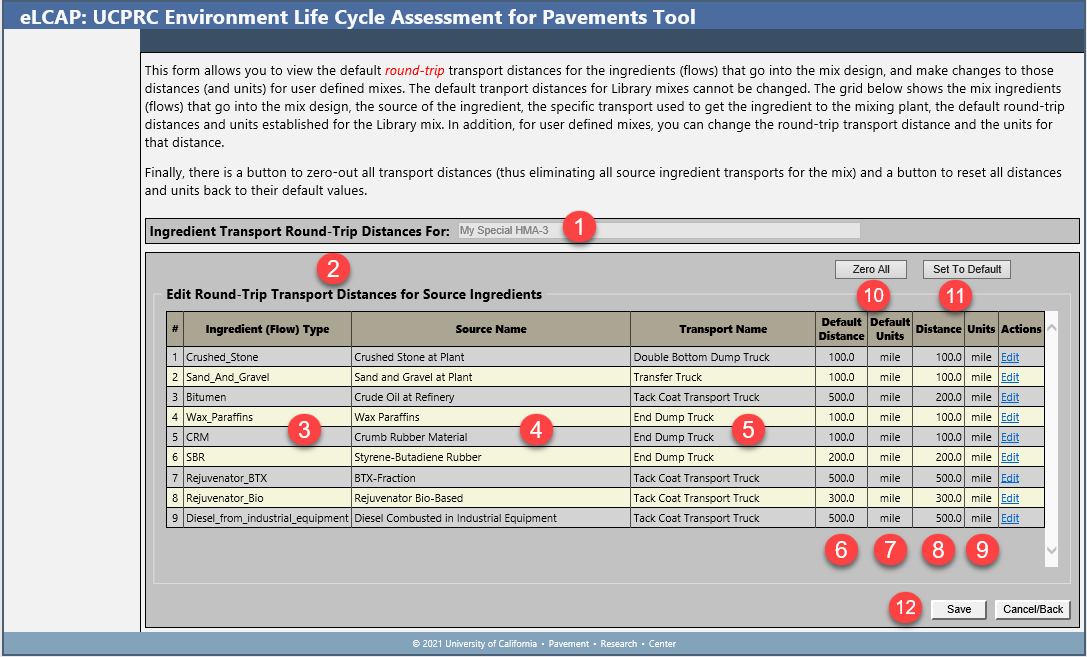

The following controls are located on the Source Transport Page

This page is shown by selecting the Source Transport button when adding or editing a user defined material mix. This button is disabled when adding/editing a user defined equipment and transport.

This page lists the input flows (ingredients) that go into a mix and the name of the transport and round-trip distance used to get the ingredient material to the mixing plant. You may change the round-trip distance for user defined mix ingredients, but you may not make any changes to library mixes.

The following discusses each control associated with the transports used to get mix ingredients to the mixing plant. Recall that round-trip distances may only be changed for user defined mixes, not library mixes.

1.This controls shows the name of the material mix.

2.This label emphasizes that the transport distances are round-trip distances.

3.This column shows the ingredient (flow) type.

4.This column shows the specific of the mix ingredient.

5.This column shows the name of the transport.

6.This column shows the default round-trip distance.

7.This column shows the units for the default round-trip distance.

8.This column is used to change the value of the default round-trip distance to a different value.

9.This column is used to change the units for the round-trip distance.

10.This button is used to zero-out the round-trip distance for all ingredients.

11.This button restores the round-trip distance for all ingredients back to their default setting.

12.These two buttons allows you to save or cancel the changes.
