Data Quality Page
The following controls are located on the Data Quality Page.

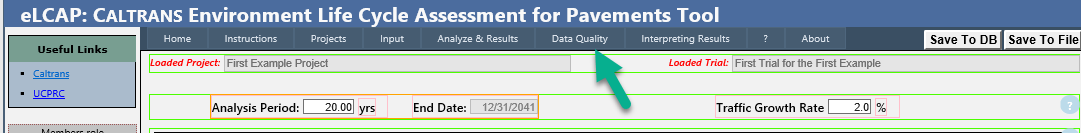

This page is shown by either selecting the Data Documentation button when viewing a library mix, or adding or editing a user defined material mix, or by selecting the "Data Quality" menu shown below.
.png)

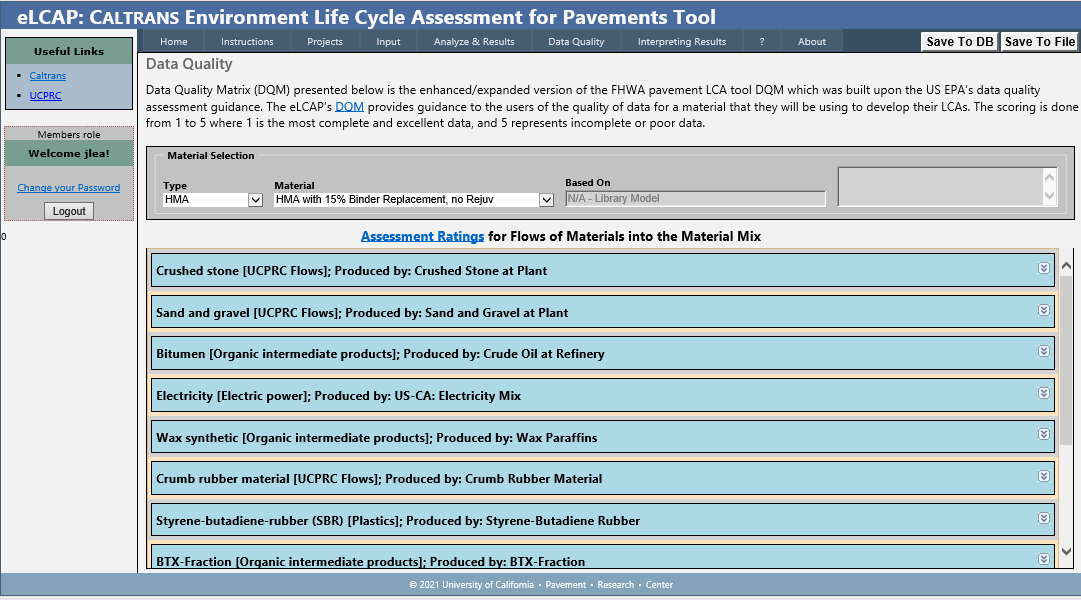

This page lists the input flows (ingredients) that are needed to produce the mix, as shown below. When you navigate to this page using the Data Documentation button, eLCAP preselects the Type and Material. When you navigate via the Data Quality menu, you will need to select a material type and a specific material.
.png)
To view the rating assessment for a specific flow, click on the name of the flow.
To view the Assessment Rating table, click on the Assessment Ratings link.
|
