Graphing Results
The following controls are located on the Graph Page.
This page is shown when the Graph button is selected on the Analyze & Results Page. It is used to view, on an XY plot, a variety of Impact results.

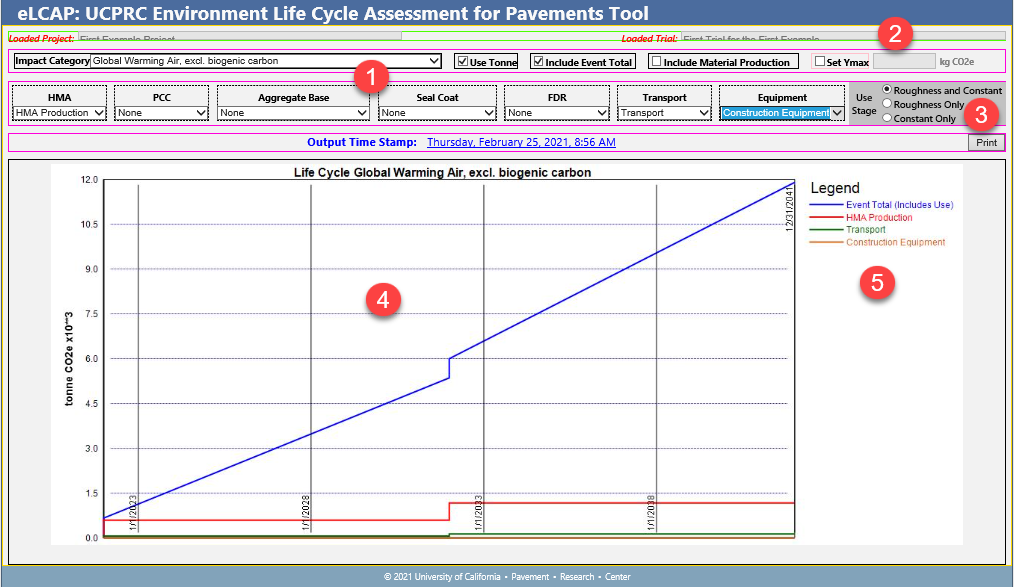

.png)
The following discusses each control on the Graph Page.
1.These controls allow you to:
a - Select one of the 18 computed Impact Categories
b - View the results in metric tonnes, selected by default
c - Include a graph line for the total event results, selected by default
d - Include a graph line for total Material Production
d - Select one of several options when displaying HMA graph lines
e - Select one of several options when displaying PCC graph lines
f - Select one of several options when displaying AB graph lines
g - Select one of several options when displaying Seal Coat graph lines
h - Select one of several options when displaying FDR graph lines
i - Select one of several options when displaying Transport graph lines
j - Select one of several options when displaying Equipment graph lines
2.This checkbox and field allow you to set a Y-max value that will be used when generating all graphs
3.This set of radio buttons allow you to include some or all of the components in the IRI roughness equation used to compute GHG for the Use Stage. see Section 2.7.2 of the eLCAP Report.
4.Graph area
5.Graph legend
|
